卡扣式硅橡胶绝缘护套安装工具使用说明书
文章出处：原创
责任编辑：admin
作者：Volsun
人气：
发表时间：2019-05-21 09:37
【大
中
小】

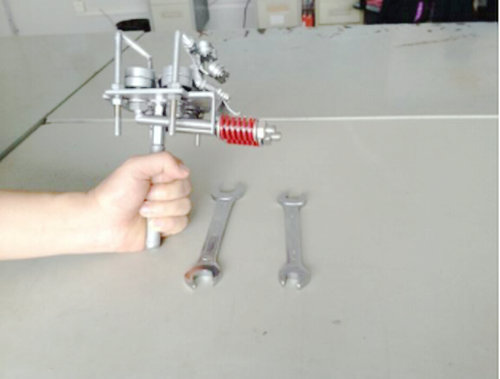

1, 安装工具带扳手2个，如图
This is the Installation Tool and two wrenches. As picture show.

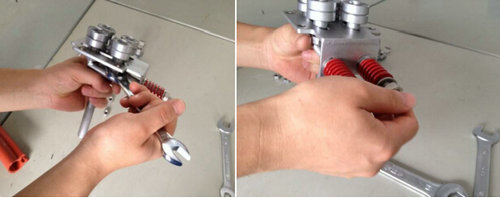

2，拆下安装工具顶部的两个压紧横杆，如图
Remove the two compression bar at the top part of Installation Tool. As picture show.

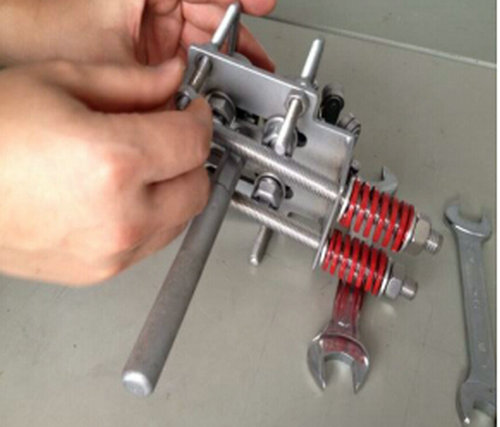

3，调松四个压紧轴承，如图
Broken-rock the four bearings. As picture show.

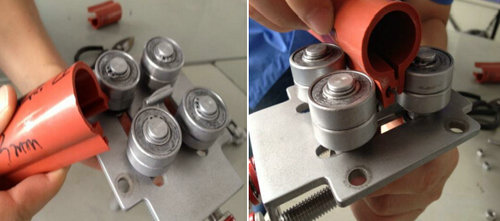

4，将开口管卡扣位置对准中间定位端子，注意，端子的槽状部分对准开口管的扣端，同时开口管卡槽里面需要涂上佩带的胶水，涂胶水步骤具体见（卡扣管粘合工艺说明），如图
As following pictures, firstly, you should put RTV glue onto the Open Part. Then put the Cover aimed at the middle positioning terminal.

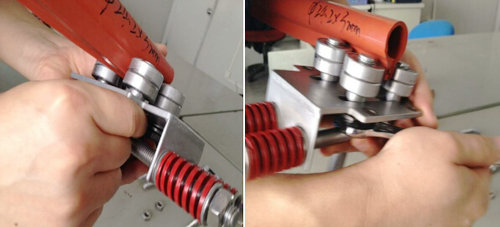

5，拧紧四个定位轴承，如图
Tighten the four bearings, as pictures show.

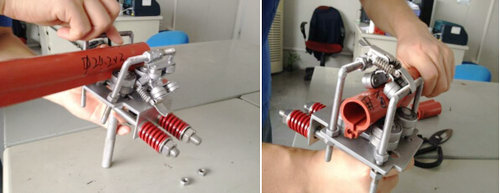

6，安装好顶部的压紧横杆，注意横杆上的压紧轴承和开口硅胶管之间需要压实但是不太紧以方便安装时拉拽，以开口管变形为基准，如图
Firstly, install the two compression bar at the top part of Tool. You should pay attention not pressure too tight, just use a stable pressure, cause it is easy for you to move silicone rubber overhead line cover. Secondly, based on the deformation of silicone rubber cover.
Pls refer to the following pics.
7，安装完成，拉动手柄，卡扣管卡扣部分就会随着安装模具的定位安装端子自动缝合。
Finish installation, then pull the handle, the Cover Part will automatically anastomosing follow the installation mold location.
